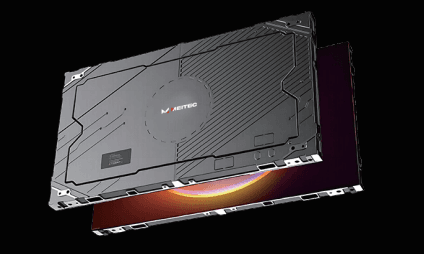

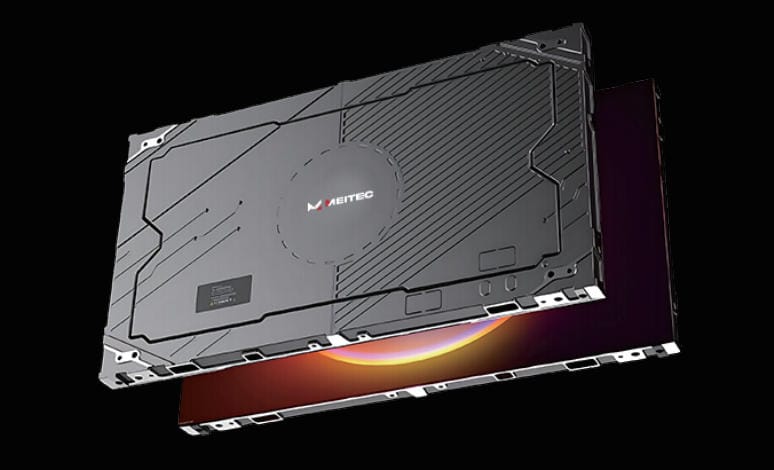

The MEITEC NOC Series is an advanced COB (Chip on Board) LED display solution designed for indoor fine-pitch applications requiring exceptional image quality, durability and flexible installation.
Tallored LED solutions for your needs.
Qulck reply within 24 hours
Professional engineers at your service
Rellable logistics worldwide
The MEITEC NOC Series is an advanced COB (Chip on Board) LED display solution designed for indoor fine-pitch applications requiring exceptional image quality, durability and flexible installation.
Featuring COB integrated packaging technology, the NOC Series delivers outstanding flatness, high contrast ratio, low reflection performance and reliable operation. With pixel pitch options from P0.9375, P1.25 and P1.5625, it provides ultra-fine image details for premium commercial and professional display environments.
The highly integrated design combines the LED module and control system into a compact structure, reducing installation complexity while improving stability and maintenance efficiency.
With a slim 32.5mm cabinet thickness, lightweight design and multiple installation methods including wall mounting and stacking installation, the NOC Series provides an ideal solution for control rooms, conference rooms, corporate displays, command centers and high-end visual applications.
这是示例文本，单击 “编辑” 按钮更改此文本。
这是示例文本，单击 “编辑” 按钮更改此文本。
这是示例文本，单击 “编辑” 按钮更改此文本。
这是示例文本，单击 “编辑” 按钮更改此文本。
| Item | NOC0.9 | NOC1.2 | NOC1.5 |
|---|---|---|---|
| Pixel Pitch | 0.9375mm | 1.25mm | 1.5625mm |
| Module Resolution | 160×180 dots | 120×135 dots | 96×108 dots |
| Module Size | 150×168.75mm | 150×168.75mm | 150×168.75mm |
| Cabinet Resolution | 640×360 dots | 480×270 dots | 384×216 dots |
| Cabinet Dimension | 600×337.5×32.7mm | 600×337.5×32.7mm | 600×337.5×32.7mm |
| Cabinet Weight | 3.7kg | 3.7kg | 3.7kg |
| Maintenance Method | Front Maintenance | Front Maintenance | Front Maintenance |
| Cabinet Flatness | ≤0.1mm | ≤0.1mm | ≤0.1mm |
| Brightness | 600cd/㎡ | 600cd/㎡ | 600cd/㎡ |
| Brightness Adjustment | 0-800 adjustable | 0-800 adjustable | 0-800 adjustable |
| Average Power Consumption | 117W/㎡ | 95W/㎡ | 100W/㎡ |
| Maximum Power Consumption | 350W/㎡ | 285W/㎡ | 300W/㎡ |
| Input Voltage | AC100-240V | AC100-240V | AC100-240V |
| Contrast Ratio | ≥10000:1 | ≥10000:1 | ≥10000:1 |
| Viewing Angle | 160°/160° | 160°/160° | 160°/160° |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz |
| Installation Mode | Wall Mounting / Stacking | Wall Mounting / Stacking | Wall Mounting / Stacking |
Security monitoring centers, Operation centers, Command platforms
Corporate meeting rooms, Boardrooms, Video conferencing environments
Brand showrooms, Retail stores, Exhibition halls
Lecture halls, Training rooms, Digital classrooms
COB (Chip on Board) technology directly integrates LED chips onto the PCB board, improving reliability, protection and image consistency compared with traditional SMD LED displays.
The NOC Series provides three pixel pitch options:
Customers can select the suitable model according to viewing distance and application requirements.
Yes. With fine pixel pitch options and high-definition performance, the NOC Series is designed for close-distance viewing applications.
The product supports:
The NOC Series supports front maintenance, allowing easier access and reducing installation limitations.
The refresh rate reaches: 3840Hz
providing smooth image performance suitable for professional display environments.
