The MEITEC LED ARIES Series is a versatile rental LED display system designed for creative stage, event and commercial display applications. With straight, curved, 90° corner and special-shaped configurations, it gives rental professionals greater flexibility to build both conventional LED walls and visually distinctive display structures.
Available in multiple indoor and outdoor pixel pitches, the ARIES Series combines a modular cabinet structure, quick-lock system, front and rear maintenance, and flexible splicing options for efficient installation and creative deployment.
Tallored LED solutions for your needs.
Qulck reply within 24 hours
Professional engineers at your service
Rellable logistics worldwide
The LED ARIES Series Rental LED Display is engineered for projects where fast installation and flexible screen configurations are equally important. Its 500 × 500 mm cabinet platform supports straight and curved configurations, while selected cabinet designs incorporate 45° cut edges for seamless 90° right-angle structures and cube-style installations without replacing the LED modules. The series also supports creative configurations using sector and triangular cabinets, allowing rental companies and event designers to move beyond conventional flat LED walls. Screwless module and control-box fixing, quick-lock connections, semi-automatic corner protection, and front/rear maintenance further simplify installation, dismantling and servicing during rental applications.

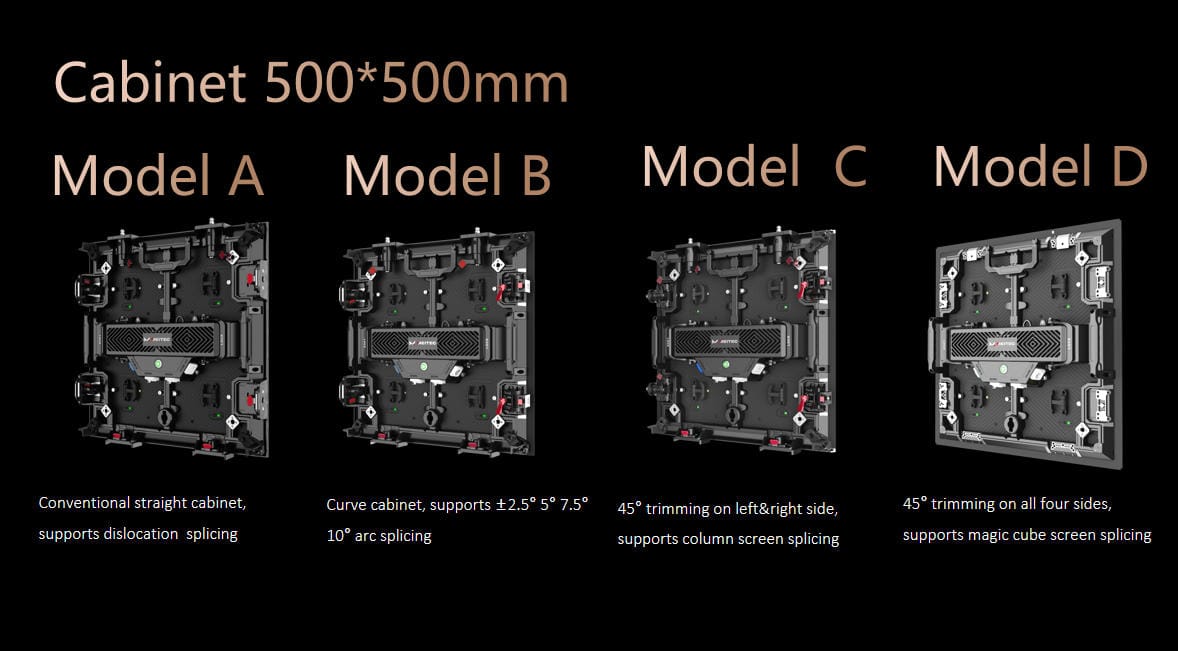

The ARIES Series includes straight and curved cabinet options. The curved cabinet supports inner and outer arc adjustment at 0°, ±2.5°, ±5°, ±7.5° and ±10°, making it suitable for curved stage backgrounds and immersive display structures.

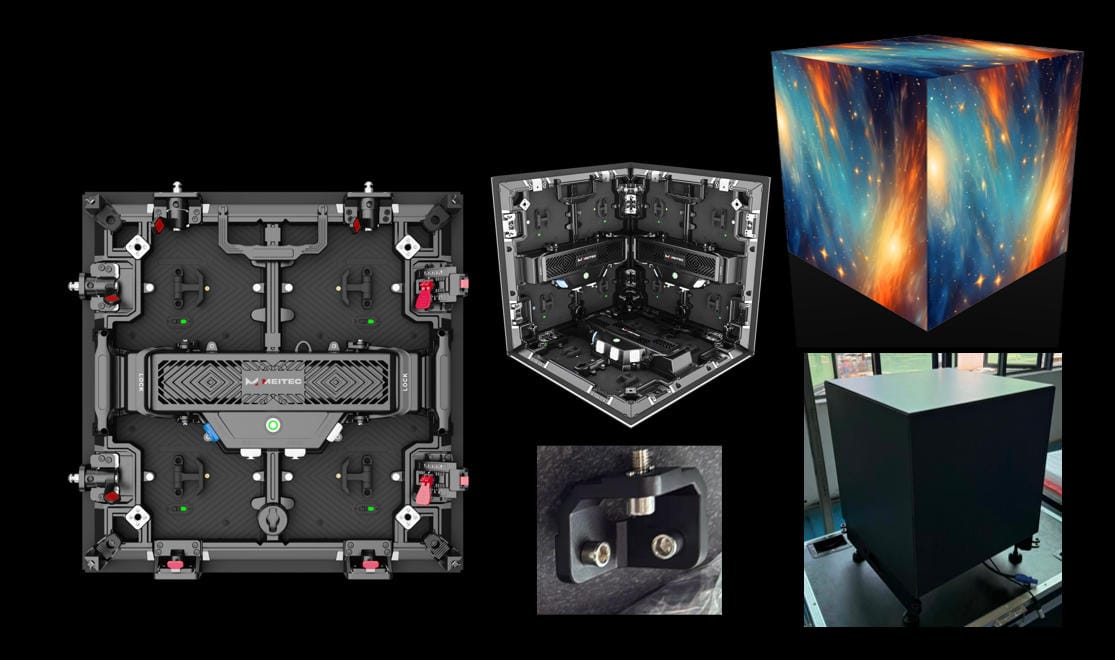

Selected cabinets feature 45° cut-edge construction and module locks, allowing 90° right-angle installation without replacing the modules. The system can also be configured into cube-style and other multi-surface creative LED structures.

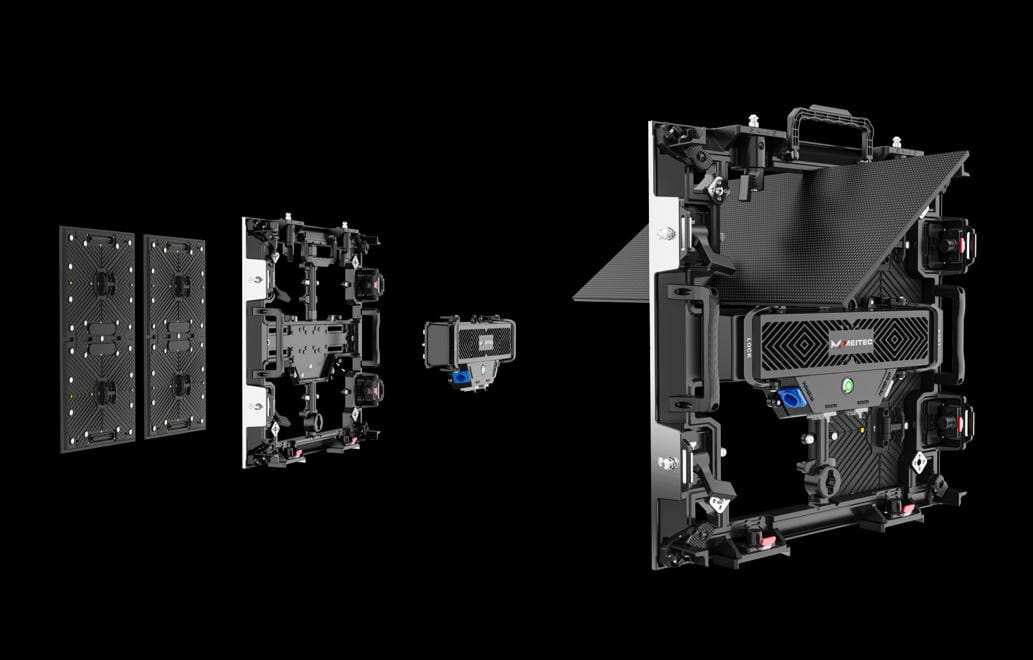

The screwless fixing system for modules and the independent control box supports installation and removal from either the front or rear. This helps reduce maintenance time and makes the system more practical for frequently assembled rental projects.

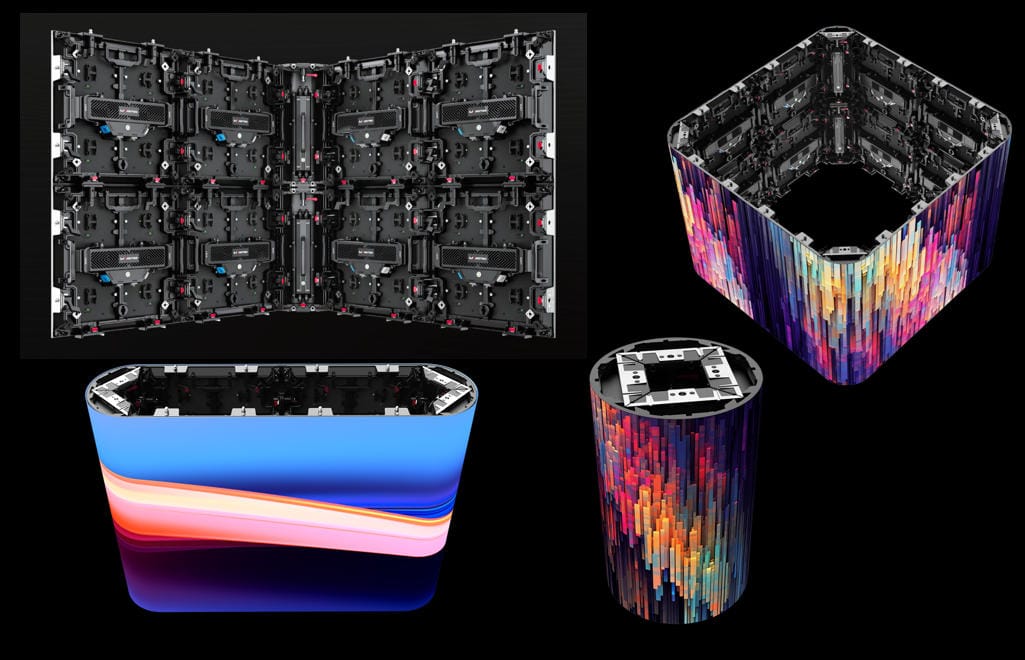

Beyond conventional LED walls, ARIES supports sector and triangular cabinets as well as creative configurations such as round, heart-shaped, diamond and other custom visual structures, giving event designers greater freedom when developing distinctive stage concepts.
| Specification | Outdoor P2.9 | Outdoor P3.9 |
|---|---|---|
| LED | SMD1415 | SMD1921 |
| Pixel Pitch | 2.976 mm | 3.91 mm |
| Module Resolution | 84 × 168 dots | 64 × 128 dots |
| Pixel Synthesis | 1R1G1B (3 in 1) | 1R1G1B (3 in 1) |
| Pixel Density | 112,896 dots/m² | 65,536 dots/m² |
| Scan Mode | 1/21 Scan | 1/11 Scan / 1/16 Scan |
| Refresh Rate | ≥3840 Hz | ≥3840 Hz |
| Driving IC | PWM High Refresh IC (or as requested) | PWM High Refresh IC (or as requested) |
| Gray Level | 13–16 Bit | 13–16 Bit |
| Module Size | 250 × 500 mm | 250 × 500 mm |
| Brightness | ≥4500 cd/m² | ≥4500 cd/m² |
| Color Temperature | 9000K ±500 | 9000K ±500 |
| Viewing Angle | ≥140° | ≥140° |
| Best Viewing Distance | >2.9 m | >3.9 m |
| Max. Power Consumption | ≤800 W/m² | ≤800 W/m² |
| Average Power Consumption | <270 W/m² | <270 W/m² |
| MTBF | >50,000 h | >50,000 h |
| Working Temperature | -20°C to 40°C | -20°C to 40°C |
| Protection Level | IP65 | IP65 |
| Specification | Indoor P1.9 | Indoor P2.3 | Indoor P2.6 | Indoor P2.9 | Indoor P3.91 |
|---|---|---|---|---|---|
| LED | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel Pitch | 1.953 mm | 2.381 mm | 2.604 mm | 2.976 mm | 3.91 mm |
| Module Resolution | 128 × 128 dots | 105 × 105 dots | 96 × 96 dots | 84 × 84 dots | 64 × 128 dots |
| Pixel Synthesis | 1R1G1B (3 in 1) | 1R1G1B (3 in 1) | 1R1G1B (3 in 1) | 1R1G1B (3 in 1) | 1R1G1B (3 in 1) |
| Pixel Density | 262,144 dots/m² | 176,400 dots/m² | 147,456 dots/m² | 112,896 dots/m² | 65,536 dots/m² |
| Scan Mode | 1/32 Scan | 1/21 Scan | 1/24 Scan | 1/21 Scan | 1/16 Scan |
| Refresh Rate | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz |
| Driving IC | PWM High Refresh IC | PWM High Refresh IC | PWM High Refresh IC | PWM High Refresh IC | PWM High Refresh IC |
| Gray Level | ≥16 Bit | ≥16 Bit | ≥14 Bit | ≥14 Bit | ≥14 Bit |
| Module Size | 250 × 250 mm | 250 × 250 mm | 250 × 250 mm | 250 × 250 mm | 250 × 500 mm |
| Brightness | ≥800 cd/m² | ≥1100 cd/m² | ≥800 cd/m² | ≥800 cd/m² | ≥800 cd/m² |
| Color Temperature | 9000K ±500 | 9000K ±500 | 9000K ±500 | 9000K ±500 | 9000K ±500 |
| Viewing Angle | ≥140° | ≥140° | ≥140° | ≥140° | ≥140° |
| Best Viewing Distance | >2.0 m | >2.3 m | >2.6 m | >3 m | >3.9 m |
| Max. Power Consumption | ≤650 W/m² | ≤960 W/m² | ≤650 W/m² | ≤650 W/m² | ≤650 W/m² |
| Average Power Consumption | <220 W/m² | <320 W/m² | <220 W/m² | <220 W/m² | <220 W/m² |
| MTBF | >50,000 h | >50,000 h | >50,000 h | >50,000 h | >50,000 h |
| Working Temperature | -20°C to 40°C | -20°C to 40°C | -20°C to 40°C | -20°C to 40°C | -20°C to 40°C |
| Protection Level | IP40 | IP40 | IP40 | IP40 | IP40 |
MEITEC focuses on LED display solutions for commercial, rental and creative applications, supporting customers from product selection through project implementation.
The ARIES platform provides straight, curved, corner and creative cabinet options, helping rental companies use one product family across a wider range of event requirements.
Quick locks, independent control boxes and screwless module fixing simplify repeated installation, dismantling and maintenance—important considerations for frequently deployed rental LED screens.
Multiple indoor and outdoor pixel pitches allow customers to select configurations according to viewing distance, installation environment and project requirements.
With refresh rates of ≥3840 Hz across the listed models, ARIES is suitable for professional event environments where displays may be captured by cameras or used as part of live productions.
MEITEC can support rental LED display projects with product configuration, cabinet selection and application-oriented technical assistance to help customers build practical display solutions.
The LED ARIES Series is a modular rental LED display system designed for indoor and outdoor events. It supports conventional flat screens as well as curved, 90° corner and creative special-shaped LED installations.
According to the product document, indoor options include P1.9, P2.3, P2.6 and P2.9, while outdoor options include P1.95, P2.6, P2.9 and P3.91. The specification sheets additionally list an Indoor P3.91 configuration.
Yes. The curved cabinet supports inner and outer arc settings of 0°, ±2.5°, ±5°, ±7.5° and ±10°, allowing different curved screen configurations.
Yes. Selected ARIES cabinet configurations use 45° cut edges and module locks to create 90° right-angle structures without replacing the LED modules.
Yes. ARIES supports both front and rear maintenance. Its screwless module and control-box design is intended to simplify installation, removal and servicing.
Yes. Outdoor P2.9 and P3.9 specifications in the supplied document provide ≥4500 cd/m² brightness, ≥3840 Hz refresh rate and IP65 protection, making these configurations suitable for outdoor rental applications.
