The SIM Pro Series is a high-performance indoor small pixel pitch LED display designed for ultra-high-definition visual applications. Featuring fine pixel pitch options from P0.9375 to P1.875, seamless splicing, high refresh rate, and energy-saving common cathode technology, it delivers exceptional image quality and reliable performance for professional indoor display projects.
Tallored LED solutions for your needs.
Qulck reply within 24 hours
Professional engineers at your service
Rellable logistics worldwide

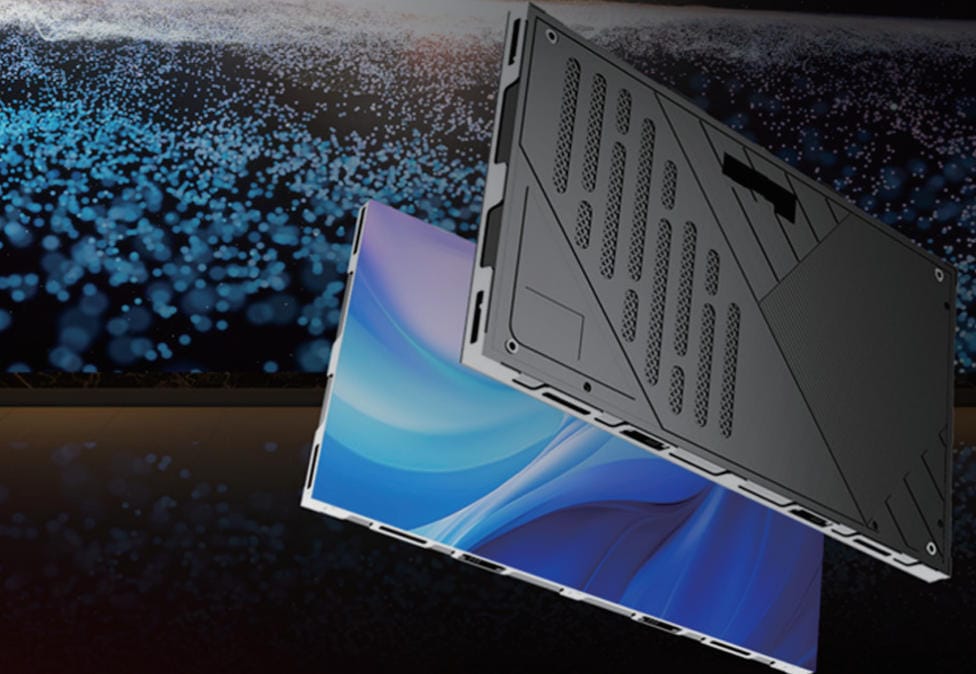

The SIM Pro Series represents Meitec’s advanced indoor small pixel pitch LED display solution, engineered for applications requiring precise image quality, smooth visuals, and flexible installation. With pixel pitch options including P0.9375, P1.25, P1.56, and P1.875, the series provides ultra-high-definition imaging with high grayscale, high contrast ratio, and refresh rates up to 7680Hz. The lightweight die-cast aluminum cabinet design offers excellent flatness, durability, and front maintenance capability, while supporting creative splicing, wall-mounted installation, lifting installation, and embedded installation. Equipped with common cathode energy-saving technology and optional dual backup systems, SIM Pro Series ensures stable operation, lower power consumption, and long-term reliability for control rooms, meeting rooms, broadcasting centers, commercial spaces, and other indoor environments.
The SIM Pro Series offers multiple small pixel pitch options including P0.9375, P1.25, P1.56, and P1.875, providing exceptional image clarity for close viewing distances. High grayscale performance and up to 7680Hz refresh rate ensure smooth images without scan lines, making it suitable for professional visual environments and high-definition video playback.
Designed with high-precision die-cast aluminum cabinets and CNC processing technology, the SIM Pro Series achieves excellent cabinet flatness and seamless connection between panels. Multiple cabinets can be combined into 2K, 4K, 8K, and even 16K ultra-high-definition LED screens for immersive visual experiences.

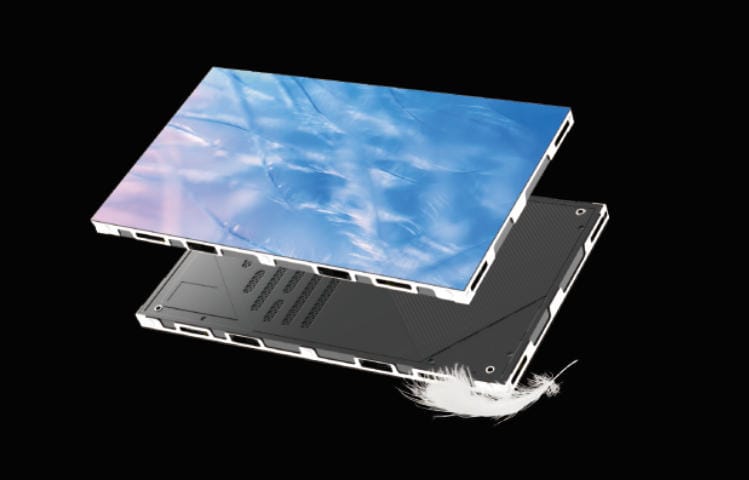

The slim 27.5mm cabinet thickness and 4.5kg lightweight cabinet design simplify transportation, installation, and maintenance. The front maintenance structure improves accessibility and reduces maintenance time, making the LED display suitable for various indoor installation environments.

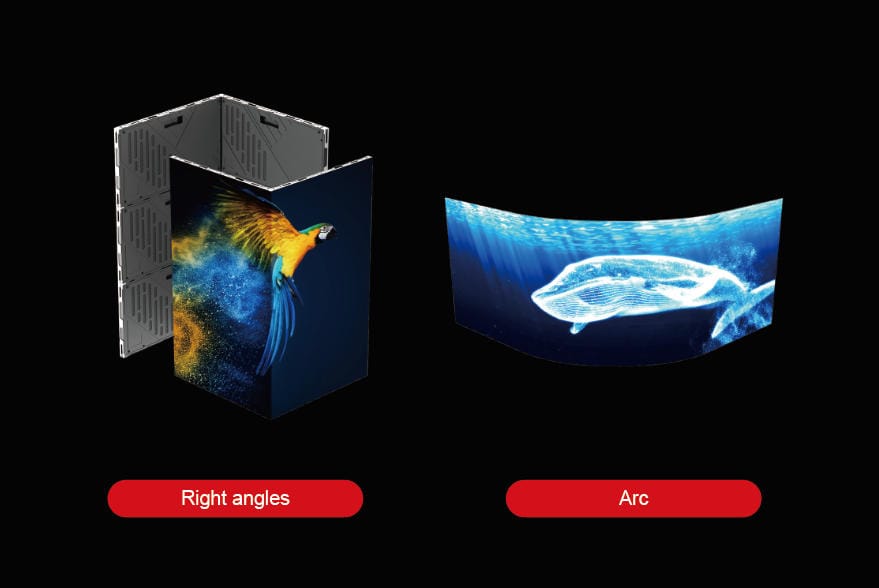

The SIM Pro Series supports wall-mounted, lifting, and embedded installation methods, while creative splicing designs allow right-angle and curved configurations. The common cathode energy-saving technology reduces power consumption while maintaining stable display performance.
| Parameter | SIM0.9 Pro | SIM1.2 Pro | SIM1.5 Pro | SIM1.8 Pro |
|---|---|---|---|---|
| Pixel Pitch | P0.9375 | P1.25 | P1.56 | P1.875 |
| LED Type | MIP0202 | MIP0606 | MIP0606 | MIP1010 |
| Physical Density | 1,137,778 dots/㎡ | 640,000 dots/㎡ | 409,600 dots/㎡ | 284,444 dots/㎡ |
| Module Resolution | 160×180 | 120×270 | 960×216 | 80×180 |
| Module Size | 150×168.75mm | 150×337.5mm | 150×337.5mm | 150×337.5mm |
| Cabinet Dimension | 600×337.5×27.5mm | 600×337.5×27.5mm | 600×337.5×27.5mm | 600×337.5×27.5mm |
| Cabinet Resolution | 640×360 | 480×270 | 384×216 | 320×180 |
| Module Quantity | 4×2 | 4×1 | 4×1 | 4×1 |
| Cabinet Weight | 4.5kg | 4.5kg | 4.5kg | 4.5kg |
| Maintenance Mode | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Brightness | 600nit | 1200/2000/3500nit Optional | 1200/2000/3500nit Optional | 1200nit |
| Viewing Angle | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Contrast Ratio | 15000:1 | 15000:1 | 15000:1 | 15000:1 |
| Refresh Rate | 3840/7680Hz | 3840/7680Hz | 3840/7680Hz | 3840/7680Hz |
| Gray Scale | 14-16bit Optional | 14-16bit Optional | 14-16bit Optional | 14-16bit Optional |
| Max Power Consumption | 350W/㎡ | 350W/㎡ | 350W/㎡ | 350W/㎡ |
| Average Power Consumption | 100W/㎡ | 100W/㎡ | 100W/㎡ | 100W/㎡ |
| Protection Grade | IP31 | IP31 | IP31 | IP31 |
| Input Power | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz |
| Working Temperature | -20~60℃ / 10%-85%RH | -20~60℃ / 10%-85%RH | -20~60℃ / 10%-85%RH | -20~60℃ / 10%-85%RH |
| Certification | CCC/CE/RoHS/FCC/CB/TUV/IEC | CCC/CE/RoHS/FCC/CB/TUV/IEC | CCC/CE/RoHS/FCC/CB/TUV/IEC | CCC/CE/RoHS/FCC/CB/TUV/IEC |
Meitec SIM Pro Series provides fine pixel pitch solutions from P0.9375 to P1.875, enabling detailed images and smooth video performance for close-viewing indoor applications.
The series adopts precision die-cast aluminum cabinets, high-quality components, and optional dual receiving card and dual power supply configurations to improve system stability and ensure uninterrupted operation.
Supporting wall-mounted, lifting, embedded installation, and creative splicing designs, SIM Pro Series can adapt to different architectural spaces and customized display requirements.
The front maintenance structure allows quick access and easier servicing, helping reduce installation complexity and long-term maintenance costs.
With common cathode energy-saving technology, the SIM Pro Series achieves lower power consumption while maintaining excellent brightness and image quality.
As an experienced LED display manufacturer, Meitec provides customized solutions, strict quality control, and professional technical support for global commercial LED display projects.
The SIM Pro Series is available in P0.9375, P1.25, P1.56, and P1.875 pixel pitch options to meet different indoor viewing distance requirements.
Yes. With small pixel pitch technology and high-resolution performance, the SIM Pro Series is designed for close viewing environments such as control rooms, conference rooms, and studios.
The series supports wall-mounted installation, lifting installation, and embedded installation. It also supports creative splicing designs including right-angle and curved structures.
SIM Pro Series adopts a front maintenance design, allowing technicians to access modules and components from the front side for easier servicing.
The SIM Pro Series supports refresh rates of 3840Hz and 7680Hz, providing smooth images and reducing scan lines during photography or video recording.
Yes. The seamless splicing design allows multiple cabinets to create 2K, 4K, 8K, and higher-resolution LED display systems according to project requirements.
