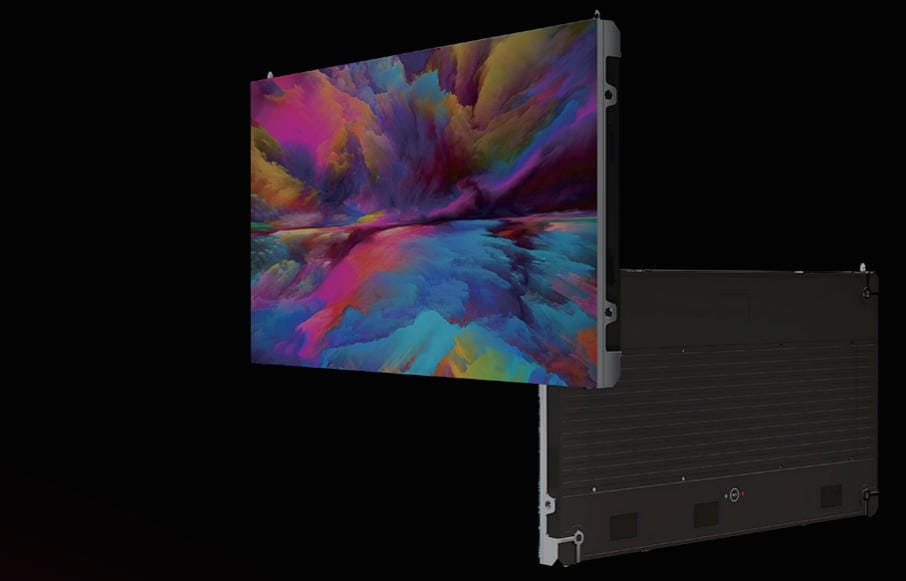

The Meitec NOC Plus Series is an ultra-fine COB Micro LED display designed for professional indoor applications requiring exceptional image quality, reliability, and continuous 24/7 operation. Powered by Full Flip-Chip COB technology and advanced 3D black printing technology, it delivers superior brightness efficiency, precise color performance, and long-term durability for mission-critical environments.
Tallored LED solutions for your needs.
Qulck reply within 24 hours
Professional engineers at your service
Rellable logistics worldwide
The Meitec NOC Plus Series is a premium COB Micro LED display solution engineered for high-end indoor visual applications such as command centers, control rooms, corporate meeting spaces, broadcasting studios, and premium commercial environments. Utilizing advanced Full Flip-Chip COB packaging technology combined with Micro LED technology and innovative 3D black printing, NOC Plus provides excellent luminous efficiency, lower power consumption, enhanced contrast performance, and outstanding visual consistency.
With ultra-fine pixel pitch options including P0.9mm, P1.2mm, and P1.5mm, the COB LED display delivers detailed images with smooth grayscale performance and accurate color reproduction. The display supports front maintenance, compact cabinet design, and high reliability features including dual power backup and dual receiving card redundancy, making it an ideal choice for professional applications requiring stable 24/7 operation.

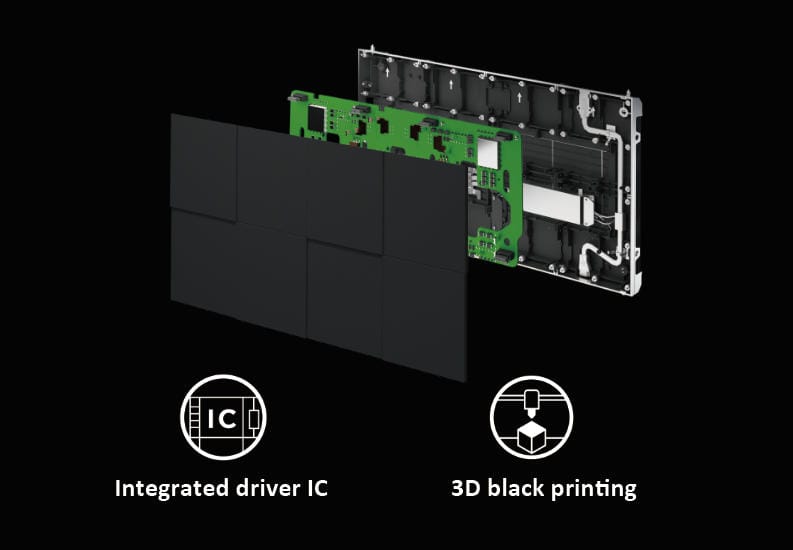

The NOC Plus Series adopts Full Flip-Chip COB packaging technology to improve display reliability, heat management, and optical performance. Combined with Micro LED technology, it provides higher luminous efficiency, reduced power consumption, and excellent display consistency for demanding professional environments.
Available in P0.9mm, P1.2mm, and P1.5mm pixel pitch options, NOC Plus delivers ultra-high resolution images with precise details. Pixel-level color calibration ensures excellent uniformity, natural color reproduction, HDR performance, and smooth grayscale even under low brightness conditions.
The COB encapsulation structure provides strong protection against dust, moisture, impact, and corrosion. With an IP65-rated display surface, the screen offers improved durability, easy cleaning, and reliable performance for long-term operation.

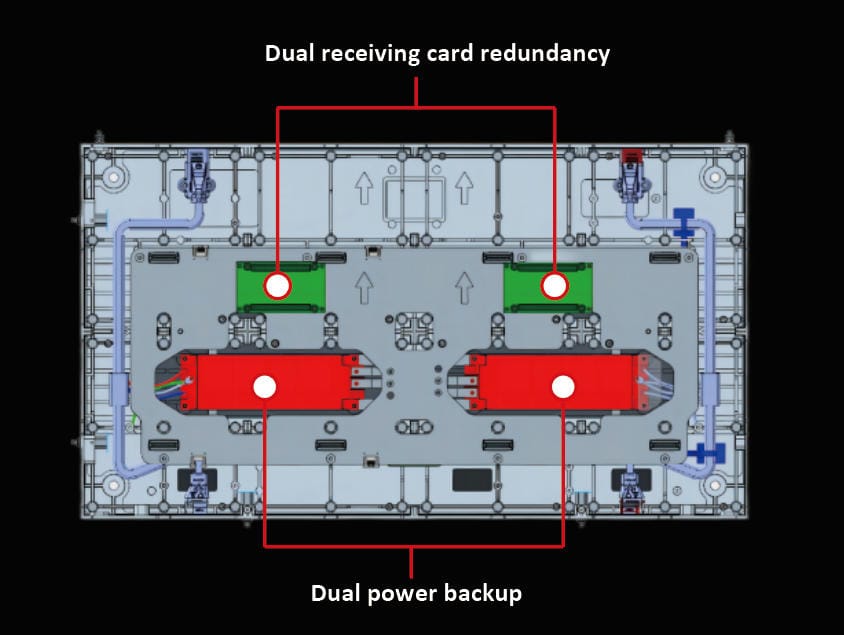

Designed for professional applications requiring maximum stability, NOC Plus integrates dual power backup, dual receiving card redundancy, precision manufacturing, and front maintenance design to ensure uninterrupted operation and convenient system maintenance.
| Specification | NOC0.9 Plus | NOC1.2 Plus | NOC1.5 Plus |
|---|---|---|---|
| Pixel Pitch | 0.9375mm | 1.25mm | 1.5625mm |
| LED Type | Full Flip-Chip COB | Full Flip-Chip COB | Full Flip-Chip COB |
| Physical Density | 1,137,777 dots/㎡ | 640,000 dots/㎡ | 409,600 dots/㎡ |
| Module Resolution | 160×180 | 120×135 | 96×108 |
| Module Size | 150×168.75mm | 150×168.75mm | 150×168.75mm |
| Cabinet Dimension | 600×337.5×35mm | 600×337.5×35mm | 600×337.5×35mm |
| Panel Resolution | 640×360 | 480×270 | 384×216 |
| Module Quantity | 4×2 | 4×2 | 4×2 |
| Cabinet Weight | 4.6±0.5kg | 4.6±0.5kg | 4.6±0.5kg |
| Maintenance Mode | Front Maintenance | Front Maintenance | Front Maintenance |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Brightness | 600-800 nits | 600-800 nits | 600-800 nits |
| Color Temperature | 3000-13000K Optional | 3000-13000K Optional | 3000-13000K Optional |
| Viewing Angle | 160°/160° | 160°/160° | 160°/160° |
| Contrast Ratio | 15000:1 | 15000:1 | 15000:1 |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz |
| Grey Level | 14bit | 14bit | 14bit |
| Protection Grade | IP65/IP30 | IP65/IP30 | IP65/IP30 |
| Input Power | AC100-240V, 50-60Hz | AC100-240V, 50-60Hz | AC100-240V, 50-60Hz |
| Working Temperature | -20~50℃ / 10%-80%RH | -20~50℃ / 10%-80%RH | -20~50℃ / 10%-80%RH |
| Certification | CCC/CE/CB/ETL/FCC/RoHS | CCC/CE/CB/ETL/FCC/RoHS | CCC/CE/CB/ETL/FCC/RoHS |
| Max Power Consumption | 260W/㎡ | 215W/㎡ | 220W/㎡ |
| Average Power Consumption | 86W/㎡ | 71W/㎡ | 73W/㎡ |
Meitec focuses on advanced LED display technologies and provides professional COB LED display solutions designed for commercial and industrial applications.
NOC Plus is engineered for mission-critical environments with dual power backup and dual receiving card redundancy, ensuring stable operation for continuous professional use.
The combination of Micro LED flip-chip technology and COB packaging delivers improved efficiency, enhanced reliability, and superior image performance.
With pixel-level calibration, high contrast ratio, HDR capability, and 3840Hz refresh rate, NOC Plus provides realistic colors and smooth image presentation.
The lightweight die-cast aluminum cabinet and front maintenance design simplify installation, servicing, and long-term operation.
Meitec provides flexible pixel pitch options, professional technical support, and customized COB LED display solutions to meet different project requirements worldwide.
The NOC Plus Series is an ultra-fine COB Micro LED display designed for professional indoor applications. It uses Full Flip-Chip COB technology and advanced Micro LED technology to provide high-quality images, durability, and reliable 24/7 operation.
The NOC Plus Series is available in three pixel pitch options: P0.9mm, P1.2mm, and P1.5mm, allowing customers to select suitable resolution levels based on viewing distance and application requirements.
COB LED displays provide improved protection, better reliability, enhanced heat dissipation, and higher durability compared with traditional LED display technologies. They are especially suitable for professional indoor applications.
Yes. The NOC Plus Series is designed for continuous professional operation and features dual power backup, dual receiving card redundancy, and reliable COB protection technology.
The NOC Plus Series supports front maintenance, making installation and maintenance more convenient, especially for fixed indoor installations where rear access is limited.
The display is suitable for command centers, control rooms, data visualization centers, corporate meeting rooms, broadcasting studios, education facilities, and premium commercial display projects.
